RC UGV UNMANNED TRACKED ROBOT TANK BASE

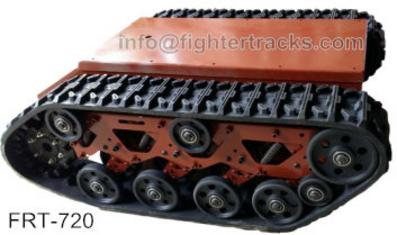

Model: FRT-720

​

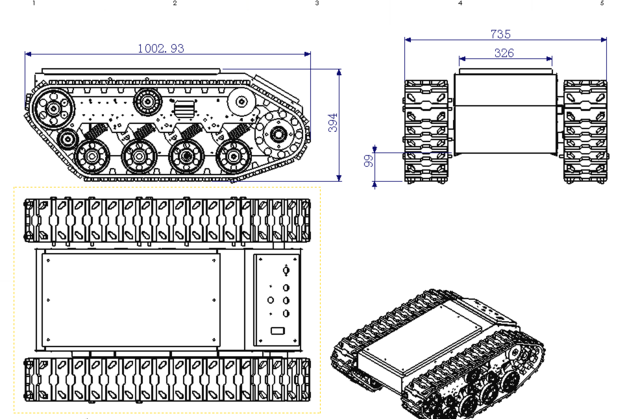

• Dimension: 1003(L)*735(W)*394(H)


• Max load: 80kg


• Width of rubber track: 150mm


• Weight: net weight 101.5kg, gross weight including plywood crate:132kg.

• Motor: industrial brushless DC motor, 48V, 600-800W*2.


• Remote control robot chassis with differential steering system.


• Can be equipped with fire fighting or snow plowing device as per customer's requirement.

• Remote control: 6 channels, control distance can reach 500m.


• Material of structure: steel with painting.


• Rubber track - Rubber track with Kevlar reinforcement.


• Rubber track pattern: 2 options are available, see 150A or 150Bin our rubber tracklist.


• Type of suspension: Spring-type independent suspension, more flexibility.


• Color: customizable.


​    Application: FRT-720 tracked robot chassis is ideal for a robot for inspection, fire fighting, and detection...

Click here if you want to see more of our tracked chassis.

Please leave your message here, we will give you a reply within 24 hours!

REMOTE CONTROL TRACKED ROBOT CHISSIS

MODEL: FRT-720

All of our rubber track products are produced in China, we provide worldwide shipping service, no matter by air, sea, or courier.  If you need shipping to the door, please leave your address/port when you send an inquiry to us.
