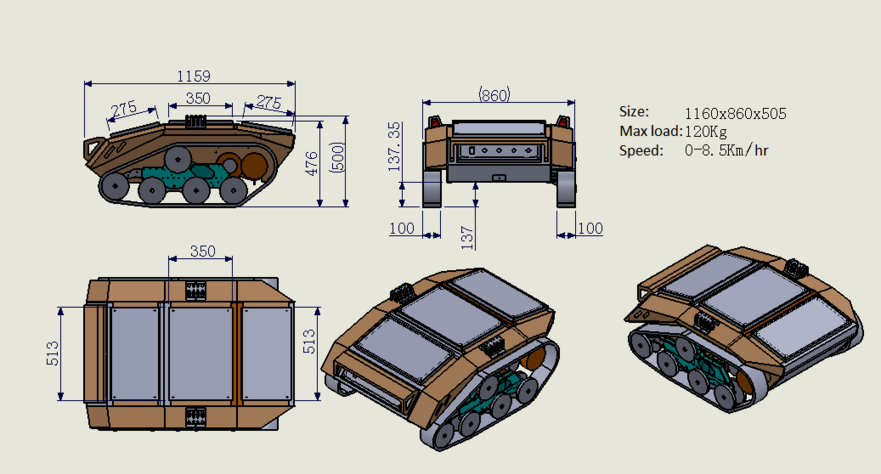

Specification of tracked robotic RC tank chassis MI-116

• ​ Dimension: 1159(L)*860m(W)*500m(H)


•  Max loading: 150kg


•  Motor: industrial brushless DC, 48V, 2*1000W motor


•  Speed: 0-8 km/hr


•  Remote control distance: <=500m


•  Track width: 100mm


•  Weight: 138kg, not including battery.

•  Clearance(From bottom to ground): 137mm.


•  Material of track: rubber with steel wire reinforcement.


•  Material of structure: Steel.


•  Material of drive sprocket: steel or UHMPE.


•  Battery recommended: 48V, 30Ah-50Ah, Lithium battery.


•  Slop climbing ability: 35 degrees.



​Advantages of tracked robotic RC tank chassis MI-116

• ​Easy operation.

• Smooth driving.

• Medium size with heavy loading ability.

• Brush-less motor, more durable.

• Direct gear box, more saving of energy.

• Consider safety in the control system design, more safe when climbing slope.

• Specially designed rubber track with metal cores, never come off when turning directions with heavy loading.

• Continuous spiral structure rubber tracks are more durable compared with rubber tracks with overlapping joint structures.


• MI-116 is designed It's ideal for robot mobile which is used in complex environments with loading 100-200kg.

WhatsApp

Receiver Parameters
MI-116 tracked robotic RC tank chassis use 9-channel 2.4GHz dual-core, dual antenna, dual receiver.
Frequency band: 2.400GHz-2.483GHz
Sensitivity: -97dBm
Ground straight distance: >= 900 meters
Decoding method PPM / PCMS 1024 / PCMS 4096
Quick signal recovery, runaway protection
Power: 4.8-6V
Size: 44.8*27.9*16.39mm.

Driver Parameters
MI-116 tracked robotic RC tank chassis use 48V 50A driver specially design for tracked vehicles.
Dimension of driver box: 130 *190 *50mm.

Please leave your message here, we will give you a reply within 24 hours!

TRACKED ROBOT RC TANK CHASSIS

MODEL: MI-116
