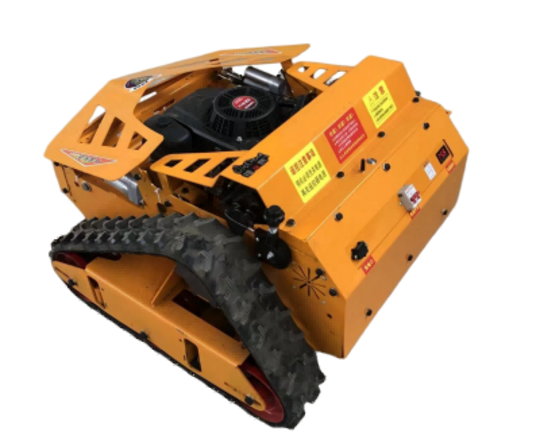

Type #2 - RC Tracked Robotic Lawn Mower MW-9HR：

Parameters for Tracked Robotic Lawn Mower MW-9HR：

Model:  MW- 9HR
Cutting height range:  30-150mm (electric heightening)
Cutting width:  50 cm
Max tilt angle:  30°
Blade: Single-blade
Engine:  Four-stroke gasoline engine
             Displacement: 225CC
             Power: 9HP, 4.2kW
             Start mode: electric/manual start

Motor size: 800w*2, brushless DC motor.
Tank size:  10L
Fuel: Gasoline:  #92
Mowing capability:  2500㎡/hour
Refueling operation time:  8 hours
Satellite navigation:  Centimeter-level positioning
Total weight (kgs):  150
Outside dimensions:  100cm x 96cm x 60cm

Remote control distance: 200m

Parameters for Tracked Robotic Lawn Mower MW-18HR：

Model:  MW- 18H
Cutting height range:  30-150mm (electric heightening)
Cutting width:  80cm
Max tilt angle:  30°
Blade: Single-blade
Engine:  Four-stroke gasoline engine
             Power: 18 HP, 12.2kW
             Start mode: electric/manual start
Tank size:  15L
Fuel: Gasoline:  #92
Mowing capability:  2500㎡/hour
Refueling operation time:  8 hours
Total weight (kgs):  289
Outside dimensions:  110cm x 120cm x 45cm
Data communication:  Bluetooth, WIFI

Satellite navigation:  Centimeter-level positioning (Optional)
Obstacle avoidance: By route plan.

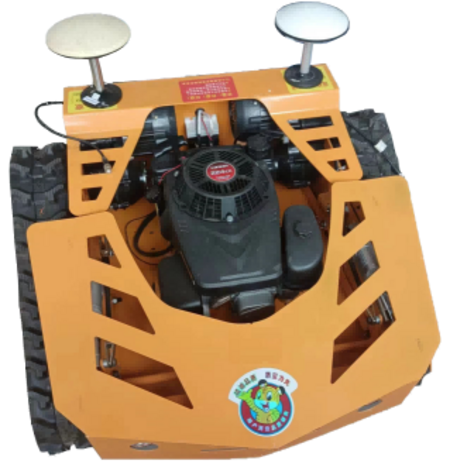

Type#1 - MW-9HG Intelligent GPS Tracked Robotic Lawn Mower

Description of MW-9HG Tracked Robotic Lawn Mower

MW-9HG tracked lawnmower is a robotic planning-type borderless intelligent satellite navigation lawnmower with a tracked crawler, it is equipped with an oil-electric hybrid power supply system. It is ideal to be applied for automatic intelligent weedings like orchards, riverbanks, and other scenes, the labor cost for weeding can be greatly reduced. M50P tracked intelligent lawnmower is equipped with the navigation system of "satellite navigation + inertial navigation + microwave radar", it not only can realize intelligent perception and independent safety, but it can also keep the stable operation in a complex environment. Equipped with a high-power four-stroke gasoline engine, it can provide power for both mowing and power generation, and it can keep batteries for weeding enough power. Tracked chassis (crawler) is suitable for hill-climbing and cross-country weeding operations in all types of grass fields.

More features of MW-9HG Tracked Robotic Lawn Mower

• More accurate - High precision electronic map & positioning autonomous navigation of centimeter-level.

• Strong capability - The tracked crawler can go through outdoor grass fields.

• 4G remote startup, remote video surveillance and task scheduling, multi-machine cluster collaborative operation.

• Support autonomous navigation operations and APP operations.​

• Safer with operation scenario Intrusion detection and alarm function.​

• More Intelligent - Intelligent operation area statistics, maintenance reminders, oil displays, and low-level alarms.

• More compact, and easy to carry to any place by a small van.


Specification of Mower MW-9H

Model:  MW-9HG
Cutting height range:  30-150mm (electric heightening)
Cutting width:  50mm
Max tilt angle:  30°
Blade:  Single blade
Engine:  Four-stroke gasoline engine
             Displacement: 225CC
             Power: 9HP
            Start mode: electric/manual start
Tank size:  10L
Fuel: Gasoline:  #92
Mowing capability:  2500㎡/hour
Refueling operation time:  8 hours
Satellite navigation:  Centimeter-level positioning
Collision protection:  Yes
Collision detection:  Yes
Total weight (kgs):  150
Outside dimensions:  100cm x 96cm x 60cm

​Obstacle avoidance: By route plan.
Data communication:  Bluetooth, WIFI



​Click here to see more of our robotic chassis products.

Robotic Lawn Mower Remote Control / GPS

Weeding in the yard with an intelligent lawn mower can make your mowing work much easier. Just think, in hot summer days, when you stay at home, playing with your kids, watching the garden weeds are treated clean, how comfortable it's.

We have designed a simple and low-cost lawnmower. This lawnmower has the following features:

• Lithium battery power, low noise, environmentally friendly, and energy-saving.  Automatic recharging of deficient power, continuous cutting of operation breakpoints.

• Automatic route planning, no perimeter line.

• Step-less adjustment of mowing height, easy to cut to the root of weeding, self-learning to avoid obstacles, self-detect and avoid obstacles, working speed adaptive adjustment with the load.

• Remote communication system: using a graffiti wireless networking module, you can use APP to remotely control the mower and check the mower status at any time.

• Power system: 20V lithium battery pack with multiple protection functions, with an electric motor and tracked chassis,  more powerful.

• Mowing control system: use mobile phone 4G signal to realize remote start, one key control brush-less DC motor mowing.​

• Positioning and navigation system: Beidou navigation, satellite positioning, WIFI networking, theft prevention, and other functions.

WhatsApp

Satellite navigation

Beidou System

​​​ 2023 Aimipaer (Shijiazhuang) Technology Co., Ltd
    All rights reserved

Site map

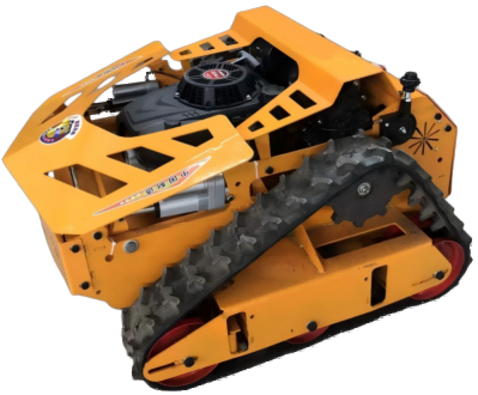

Type#3 - Tracked Robotic Lawn Mower MW - 18HR：
