​​​​​  ​   Expert in Tracked Robot Chassis & Vehicle

  ​FIGHTERTRACKS

Specifications for FT-600 Triangle Rubber Track Conversion Kits for Tractor & Harvester

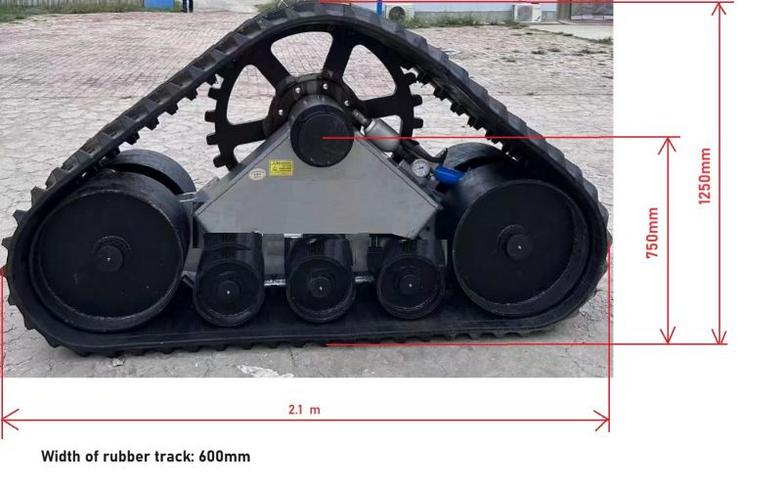

Dimensions of FT-600 Rubber Track Conversion Kits for Tractor & Harvester

1. Track width: 600mm

2. Length of track kit: 2.1 m

3. Total height: 1.25m

​4. Hight from the center of the drive sprocket to the ground: 0.75m.

5. Weight of one pair: 1.5 tons, max loading: 16 tons.

​Tractors or harvester recommended: Kubota, Case IH, John Deere 6R or 7R series, New Holland, Ford, Case IH series: Puma / Magnum series.

All of our rubber track products are produced in China, we provide worldwide shipping service, no matter by air, sea, or courier.  If you need shipping to the door, please leave your address/port when you sent an inquiry to us.

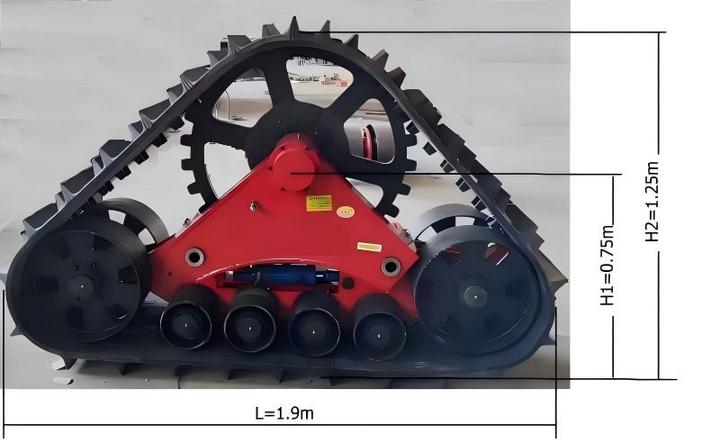

Dimensions of FT-500 Rubber Track Conversion Kits for Tractor & Harvester

1. Track width: 500mm

2. Length of track kit: 1.9 m

3. Total height: 1.25m

​4. Hight from the center of the drive sprocket to the ground: 0.75m.

5. Weight of one pair: 1.3ton, max loading: 12 tons

Specifications for FT-500 Triangle Rubber Track Conversion Kits for Tractor & Harvester

​​​ 2023 Aimipaer (Shijiazhuang) Technology Co., Ltd
    All rights reserved

Site map

Enhance Your Agricultural Machinery with Our FT-500/600 Triangle Rubber Track Conversion Kits for Tractor & Harvester

The triangular configuration maximizes ground contact, reducing slippage and enhancing overall stability. Our Triangle Rubber Track Kits are designed to revolutionize the performance and versatility of your tractors and harvesters. Engineered for durability and efficiency, these track kits are the perfect solution for your tractors and harvesters.
​

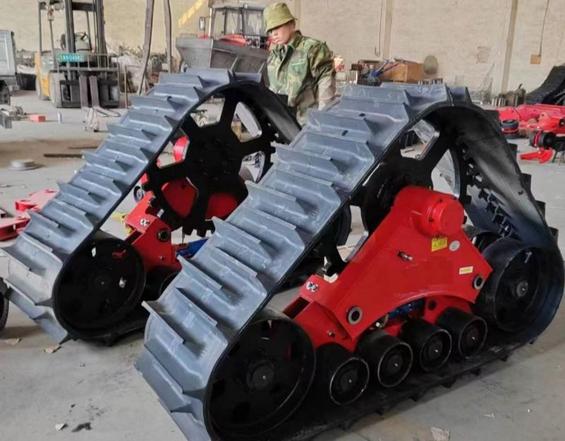

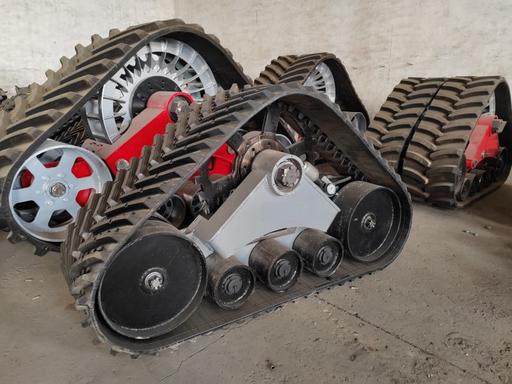

​  Triangle Rubber Track Conversion Kits for Tractor & Harvester

                                        Model: FT-500 & FT-600

Width - 450mm

Height - 1033mm

Length - 1610mm

Loading - 5000 kg

Net weight - 340kg

Distance from sprocket center to ground - 685mm​

​
Why Choose Fighter Tracks Triangle Rubber Track Kits?

Superior Traction and Stability

Our Triangle Rubber Track Kits provide unmatched traction and stability across various terrains. When you work in muddy fields, snowy conditions, or uneven ground, these tracks ensure your machinery operates smoothly and efficiently.

Minimized Soil Compaction

Soil health is critical for optimal crop yields. Traditional wheels can cause significant soil compaction, hindering root growth and water absorption. Our track kits distribute the weight of your machinery evenly across a larger area, significantly reducing soil compaction and promoting healthier crops.

Exceptional Durability

Designed with high-quality rubber and reinforced materials, our Triangle Rubber Track Kits are built to withstand the toughest conditions. They offer exceptional resistance to wear and tear, ensuring long-lasting performance and reducing the need for frequent replacements.

Increased Operational Efficiency

With improved traction and stability, your tractors and harvesters can operate at peak efficiency. This means faster field operations, reduced downtime, and increased productivity. Plus, with less soil compaction, your machinery can achieve better results with fewer passes, saving time and fuel.

Upgrade Your Machinery Today
