In the year 2022, TSYT was upgraded, the new model type is TSYT-2022

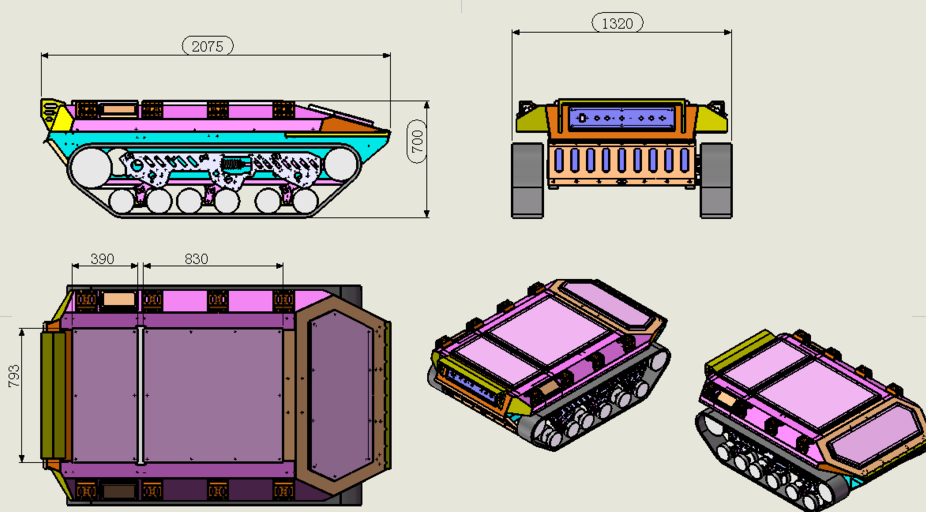

  • ​Dimension (LxWxH): 2075 x 1240 x 675mm

  • Max load: 300kg​

  • Weight: 260kg

  • Standard motor size: 2*1.5kW brushless DC motor. (More options for motor size: 2*1.8kW or 2*2.5kW ).

  • Width of rubber track: 180mm with iron core reinforcement.

  • More inside space.

  • Suspension: Professional spring-type suspension.

​The new chassis type is more durable and the loading capacity increased to 300kg.

​All types of chassis will be tested with max load before shipping.


All of our rubber track products are produced in China, we provide worldwide shipping service, whether by air, sea, or courier.  If you need shipping to the door, please leave your address/port when you send an inquiry to us.

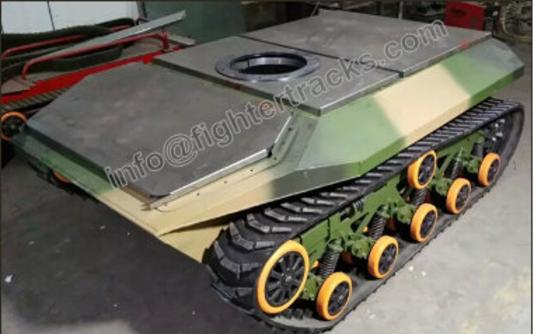

Heavy Duty Large Size Tracked Robot Chassis

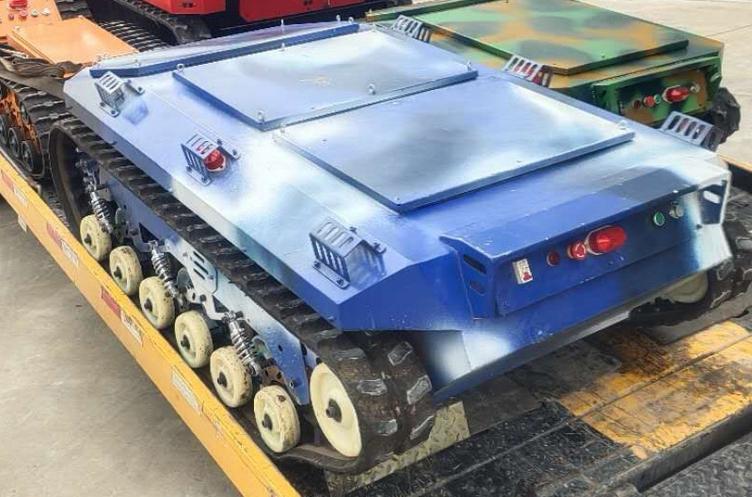

heavy duty tracked robot platform
heavy duty tracked robot platform
types of military robots - large robot chassis

Click here if you have more questions.


​​​​​​  ​   Expert in Tracked Robot Chassis & Vehicle

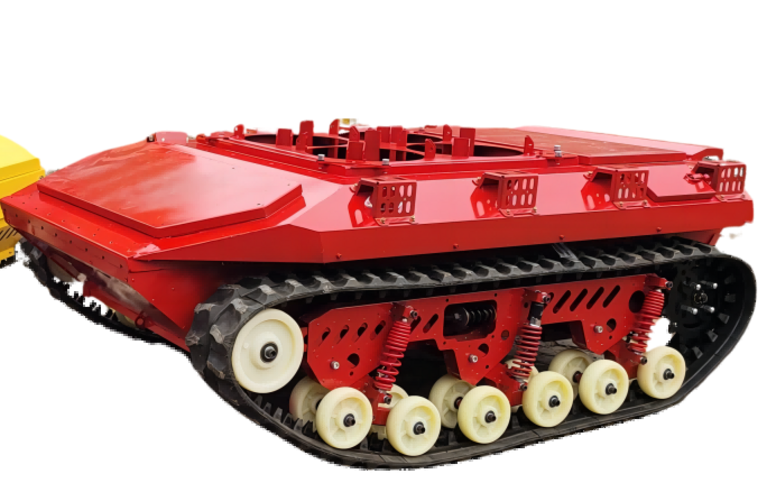

heavy duty tracked robot chassis

Click here if you want to see more of our tracked chassis.

Heavy Duty large size tracked Robot Chassis TSYT

  ​FIGHTERTRACKS

Heavy Duty Robot Chassis TSYT

​​​ 2023 Aimipaer (Shijiazhuang) Technology Co., Ltd
    All rights reserved

Site map

Please leave your message here, we will give you a reply within 24 hours!

WhatsApp


​Heavy duty large size robot chassis


Description of the TSYT Tracked Robot Chassis Platform

The TSYT tracked robot chassis platform is designed for heavy-duty applications, offering robust performance and versatility. Key features include:

​​​

  • ​Dimension (LxWxH): 1910 x 1300 x 764mm

  • Motor: Brushless DC motor, 2*48V.

  • Max load: 180kg​

  • Weight: 260kg

  • Radio remote control system included, max remote control distance can be 500m in space.

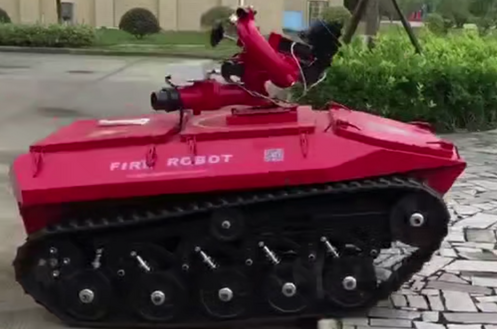

  • Application: special use like fire fighting, military, industrial use...​


 Advantages of the TSYT Tracked Robot Chassis Platform


  • Heavy Load Capacity: Structures of TSYT Tracked Robot Chassis Platform are Engineered to support substantial weights, making it suitable for heavy load applications.​

  • Durable Construction: Built with steel shell and natural rubber tracks to withstand demanding
  •  environments.

  • Suspension: a professional suspension system, ensures reliable operation in challenging conditions.

  • Customizable Design: Flexible configurations to meet specific project requirements.

  • More space and easy integration: It is compatible with various robotic systems and controls for seamless operation.

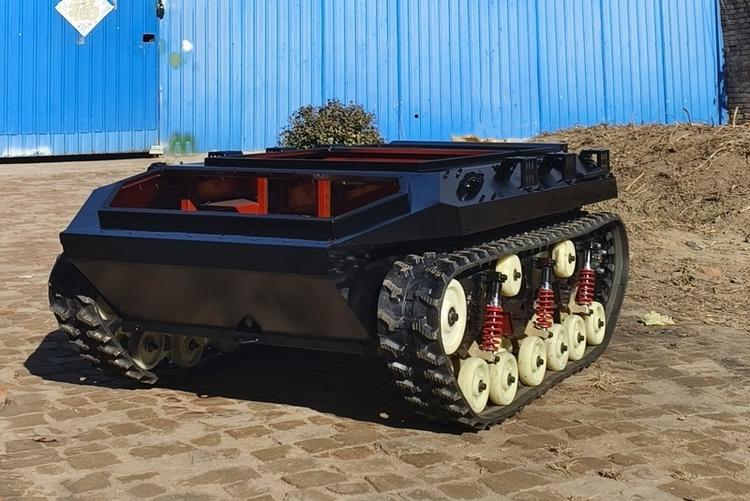

heavy duty tracked robot platform

Heavy Duty Large Size Tracked Robot Chassis

​MODEL: TSYT-2022
