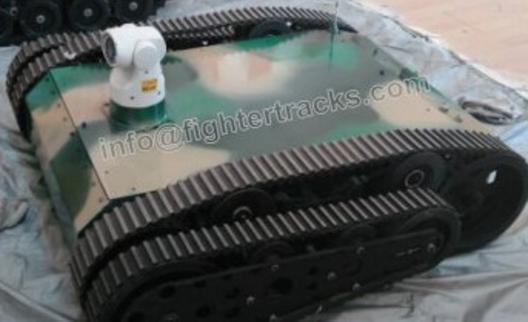

ALL TERRAIN ROBOT CHASSIS WITH WING / ARM

MODEL: ZCBB

Click here if you have more questions.

ROBOT TRACK SYSTEM

Model: ZCBB

• Dimension: 1120(L)*880(W)*320(H)

• Max load: 60kg

• Width of rubber track: 80mm

• Weight: 80kg

• Adopting worm reducer.

• Can be equipped with a Lithium-ion battery as per the customer’s requirement.

• This type of track chassis is specially designed for military detection.

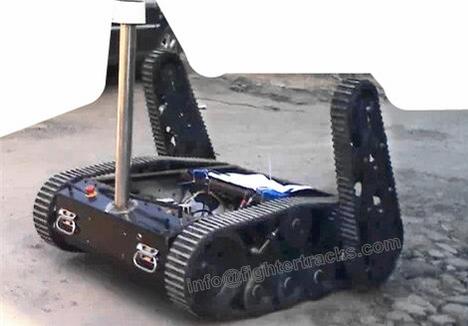

• The model of tank chassis is designed for rugged terrains. Equipped with two articulated arms it can cross over all kinds of terrains. When coming over the barrier, the assistant-track (we call it wing) rises up just like people's arms climbing up, then robot chassis pass over with the support of the assistant track. ​

• This model is similar to Multi-Chassis Tank but is for industrial use instead of a toy.

Click here if you want to see more of our tracked chassis.
